Why TKA5?
- Multi-network bonding – dual 4G LTE, Wi-Fi, Ethernet, USB dongle
- 4K/1080p Ultra-HD streaming with low-latency mode
- Wide-angle Sony CMOS lens, minimal distortion
- App control via iOS & Android
- Direct push to YouTube, Facebook, Twitch, RTMP(S)
Flagship Advantages
Native 4K encoding (2160p 30fps) with crystal-clear detail.

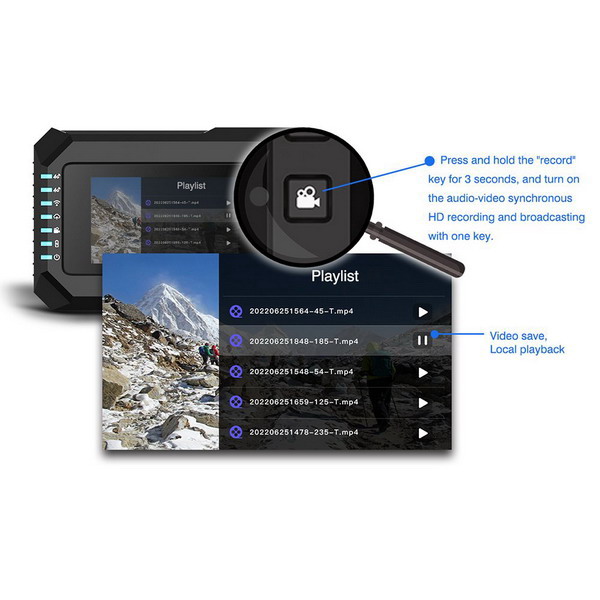

Simultaneous live stream & local recording with instant replay.

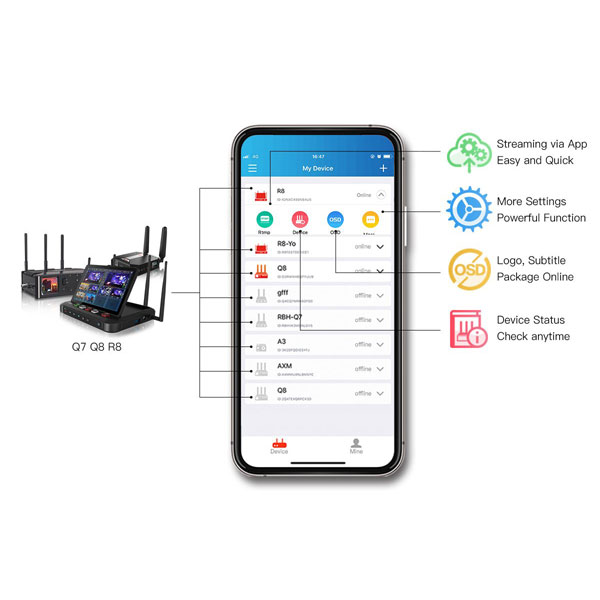

Remote device matching & one-tap streaming in ad-hoc networks.
TKA5 Basic Parameters
| General | |
|---|---|
| Model | TKA5 |
| Name | 4G Bonding Streaming Camera |
| Optical Parameters | |
| Sensor type | SONY CMOS |
| Sensor size | 1/2.8 inch |
| Effective pixels | 8 mega pixels |
| Camera angle | Diagonal 118.5° | Horizontal 110.5° | Vertical 76.3° |
| Focal length | 1.98 mm |
| Lens focus | Prime lens, 1 m → ∞ |
| Screen | |
| Size | 3 inch |
| Type | Touch-screen |
| Network & Storage | |

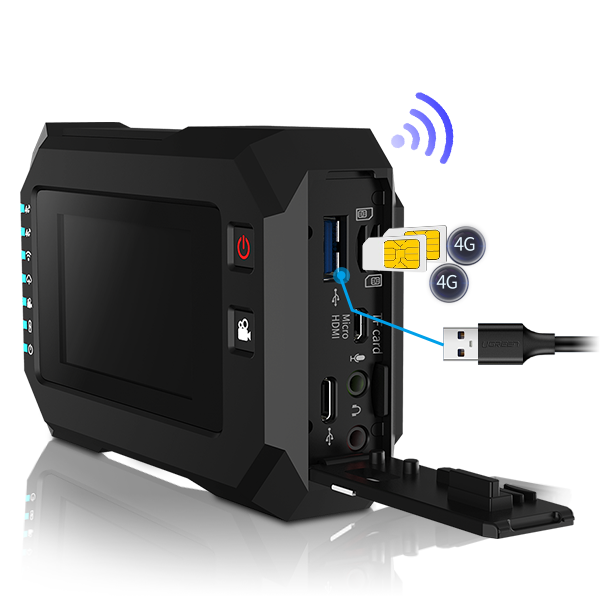

| 2 SIM slots | Built-in 4G module × 2 |
| Wi-Fi | 2.4 G / 5.8 G |
| Storage media | TF card |
| Video Encoding | |
| Maximum resolution | 3840 × 2160 p |
| Codec profiles | H.265 Main • H.264 High/Main/Base |
| Bitrate control | VBR / CBR |
| FPS | 4K 25/30 | 1080p 25/30/50/60 |
| Audio | |
| Input | Built-in dual-channel mic |
| Loudspeaker | Built-in |
| Storage | TF card |
| Encoding | AAC |
| Sample rates | 44.1 kHz / 48 kHz |
| Power | |
| Supply | DC 5 V 2 A |
| Battery capacity | 8000 mAh |
| Max consumption | 8 W |
| System | |
| Control panel | iOS / Android APP |
| Firmware update | Supported |
| Environment | |
| Operating temperature | -20 °C → 80 °C |
| Storage temperature | -40 °C → 90 °C |
| Relative humidity | 5 % – 90 % (non-condensing) |

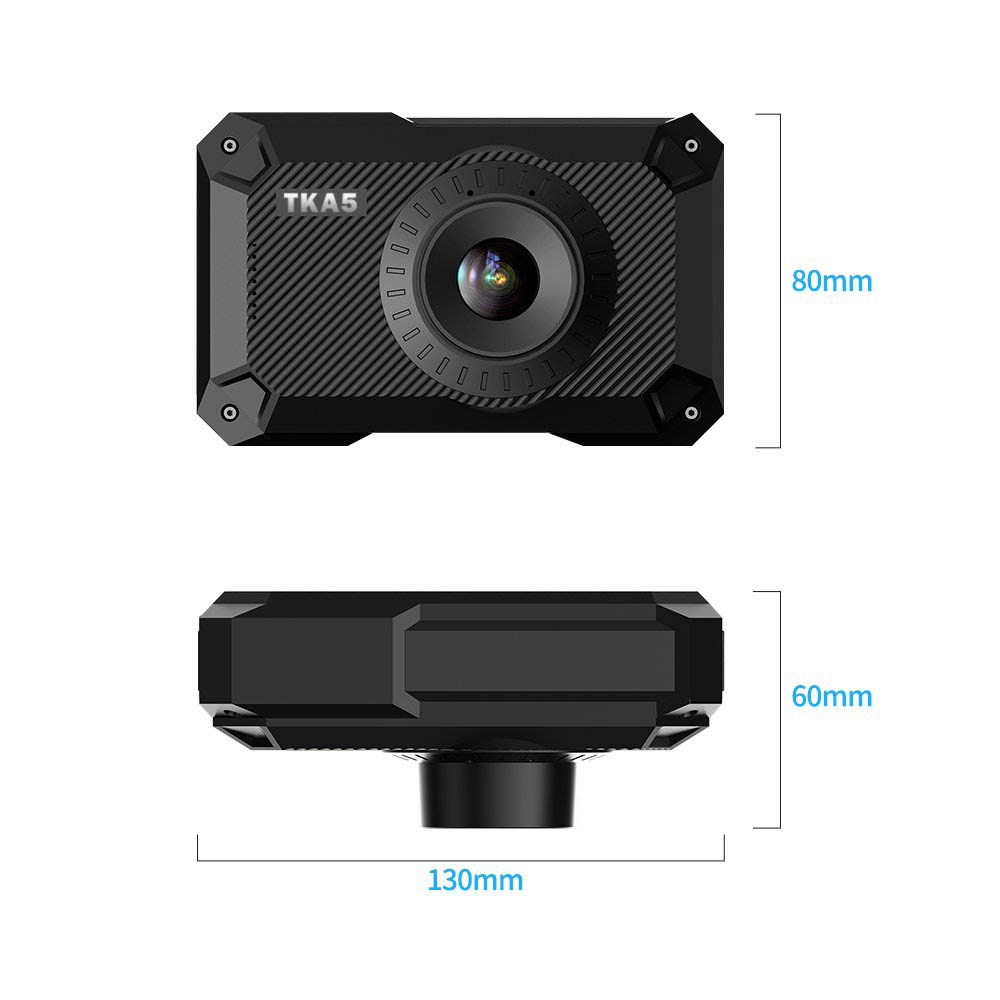

| Dimensions | |
| Size | 130 × 60 × 80 mm |
| Weight | 400 g |
TKA5 Solution
Outdoor Adventures
- Live-stream hikes & mountain climbs with stable connectivity.
- Document wildlife or scenic views in real time.
Sports & Extreme Activities
- Cycling, skiing, surfing: capture high-speed action.
- Marathons & races: broadcast POV footage instantly.
Live Events & Journalism
- Sports competitions with instant replays.
- Breaking-news streaming from remote locations.
Research & Education
- Wildlife studies without disturbing animals.
- Adventure education & survival-skill demos.

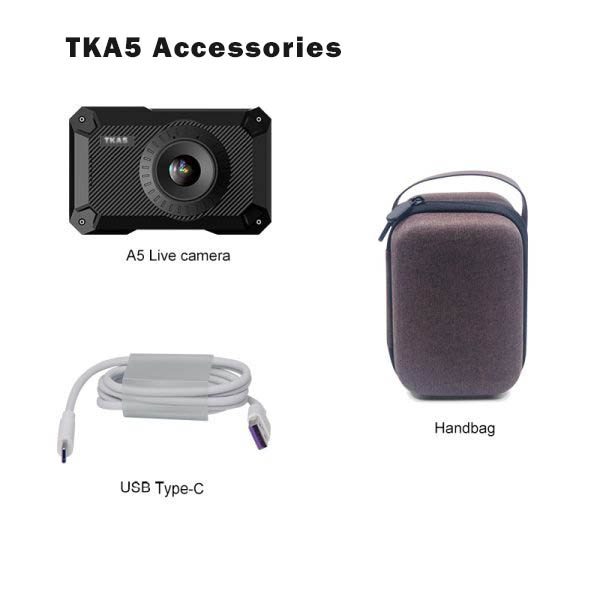

What’s in the Box
- TKA5 4G Bonding Streaming Camera ×1
- Protective Handbag ×1
- USB Type-C Cable ×1
- USB Adapter ×1
- User Manual ×1
Compact Form Factor
